Arezzo Brushed Brass Twin Concealed Shower Valve Inc. 300mm Head + 200mm Ceiling Mounted Arm

Arezzo Brushed Brass Twin Concealed Shower Valve inc. 300mm Shower Head + 200mm Ceiling Mounted Arm

This Arezzo brushed brass concealed thermostatic valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with a large 300mm round shower head with ceiling mounted arm, it’s minimalist design looks great in any setting. Our range of Showers are ideal for renewing the style of your bathroom affordably.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Round

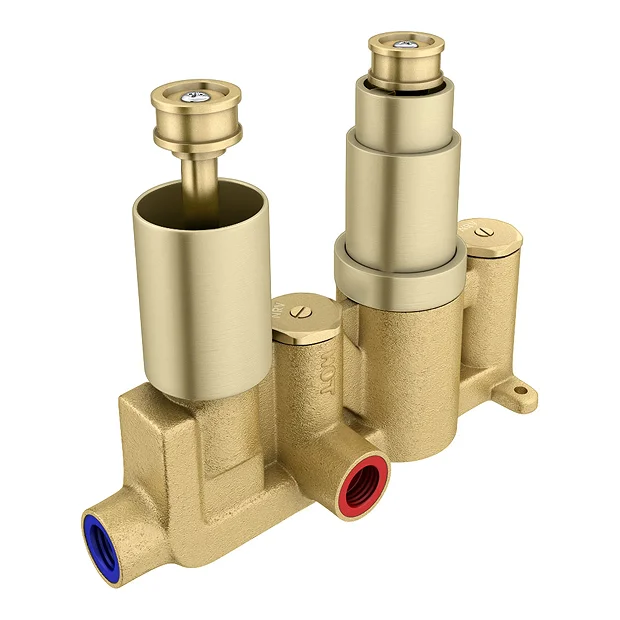

• Brass Internals

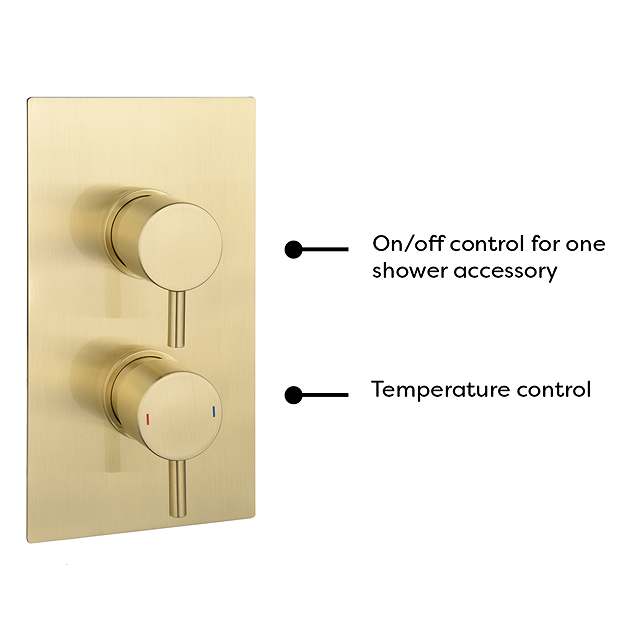

• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar

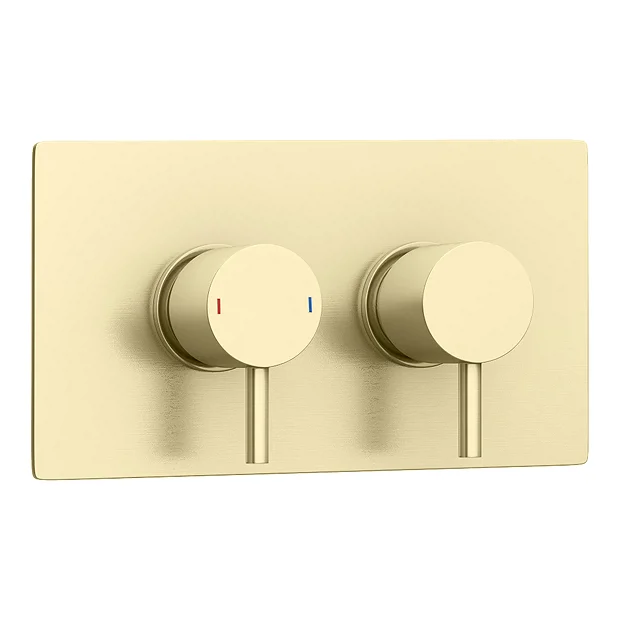

• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

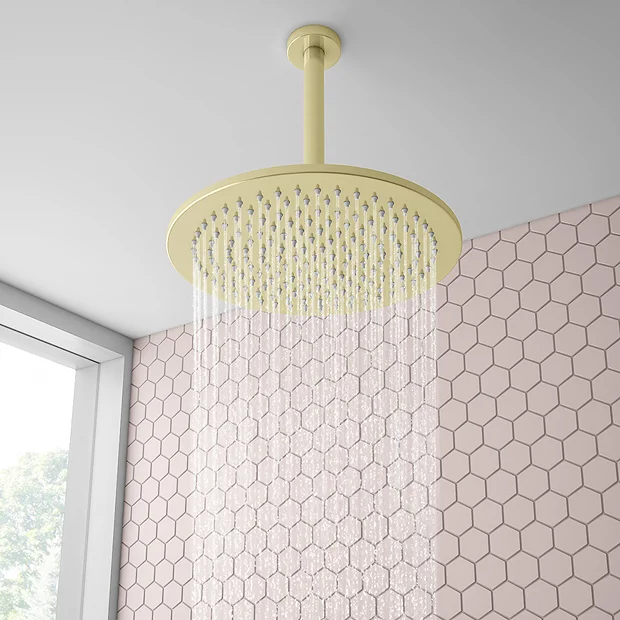

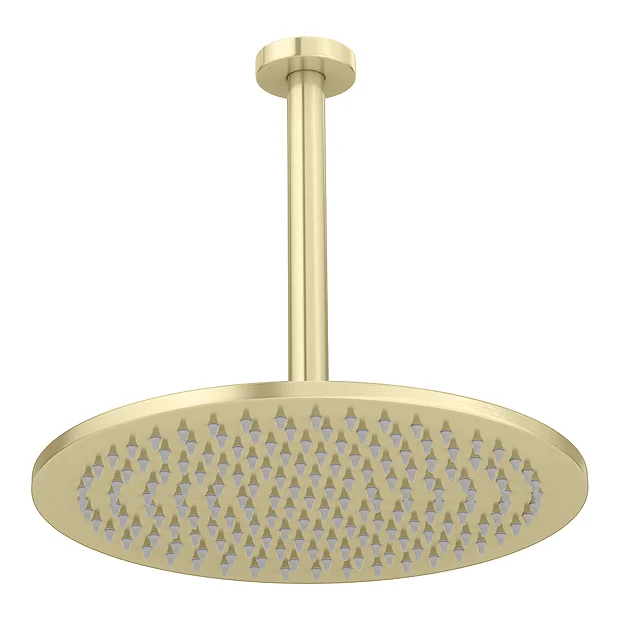

Shower Head and Arm Details

• Shower Head Dimensions: 300mm Diameter
• Shower Arm Length: 200mm (Approx.)
• Style: Modern
• Shape: Round
• Colour/Finish: Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Ceiling Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and ceiling mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• 2 Year Guarantee


Shower valve Guarantee 5 Year,(1 Year on serviceable parts for example: internal components such as check valves and cartridges)


All measurements are approximate

Pictures for illustrative purposes only

Comprises

(1) Brushed Brass Round Twin Concealed Shower Valve
(1) 300mm Brushed Brass Ultra-Thin Round Head
(1) 200mm Brushed Brass Round Ceiling Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
