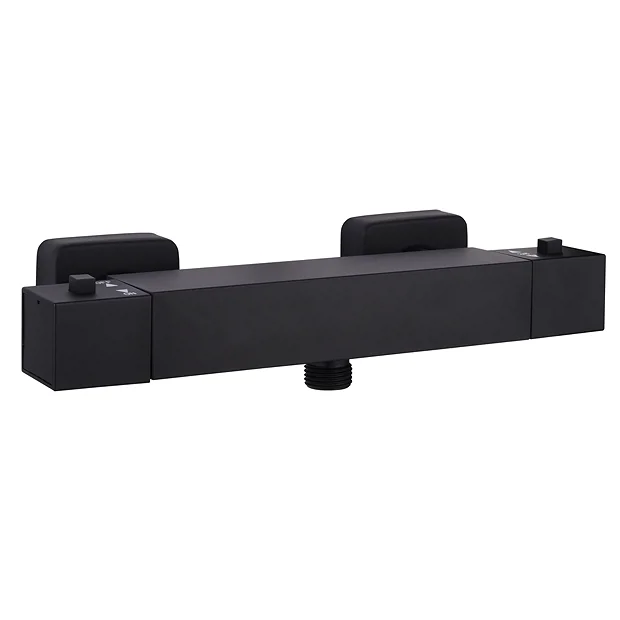

Arezzo Matt Black Square Thermostatic Bar Shower Valve

Arezzo Matt Black Square Thermostatic Bar Shower Valve

This stunning matt black Arezzo square bar shower valve is part of our range of contemporary collection of showers and valves. This modern bar valve features modern square styling with a matt black finish and has been constructed from solid brass. Features a pre-set maximum temperature that ensures that showering is safe and convenient. Supplied with decorative shrouds/covers to protect and conceal tile/wall edge, giving the installation a neat finished appearance. Pair the with a modern slider rail kit for a clean, and modern shower look.

Product Details

• Width: 262mm
• Height: 60mm
• Projection: 88mm
• Type: Bar Shower Valve
• Style: Modern
• Shape: Square
• Fitting: Exposed
• Colour/Finish: Matt Black
• Material: Brass Internals
• 1 Bottom Outlet
• Surface / Wall Mounted
• Thermostatic

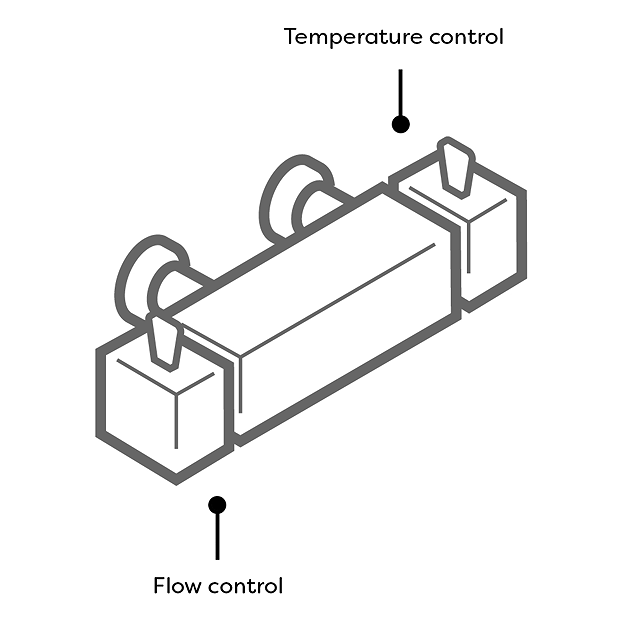

• Separate controls for temperature and flow
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Please Note: During installation, please protect the connection parts of the shower with a soft material such as cloth, or use rubber lined grips, before tightening.

 All measurements are approximate

Images for illustrative purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
