Cruze Round Shower Package With Concealed Valve + Flat Fixed Shower Head

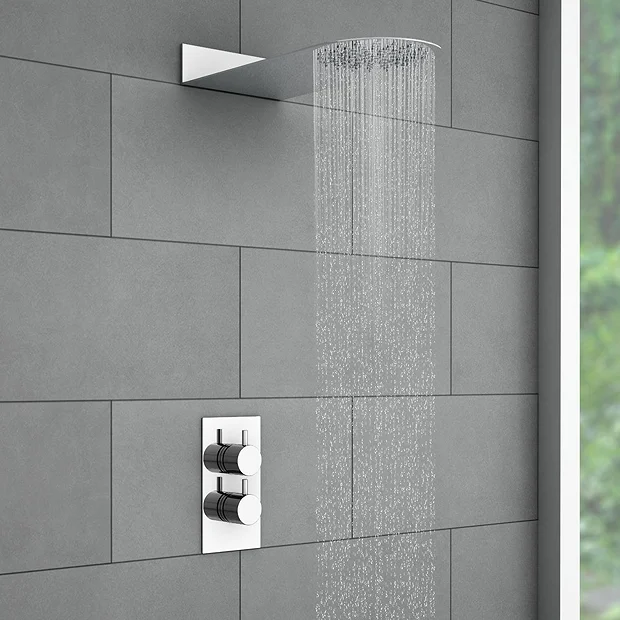

Cruze Round Shower Package with Concealed Valve + Flat Fixed Shower Head

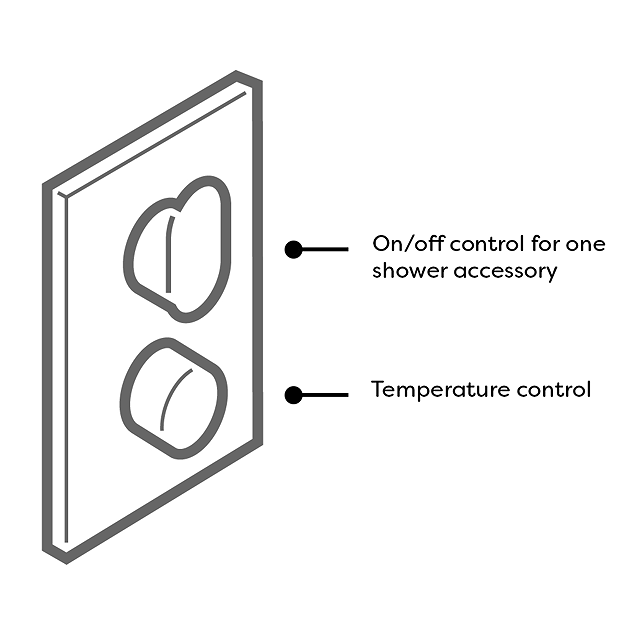

This minimalist Cruze Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with a fixed round flat rainfall Shower head.

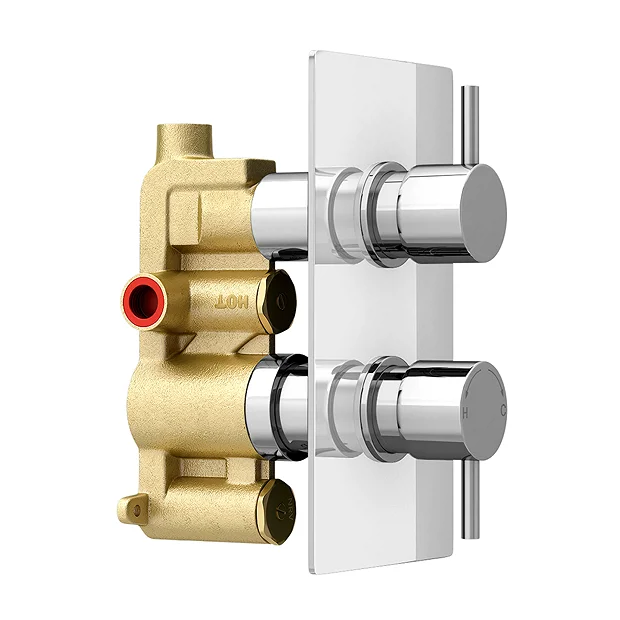

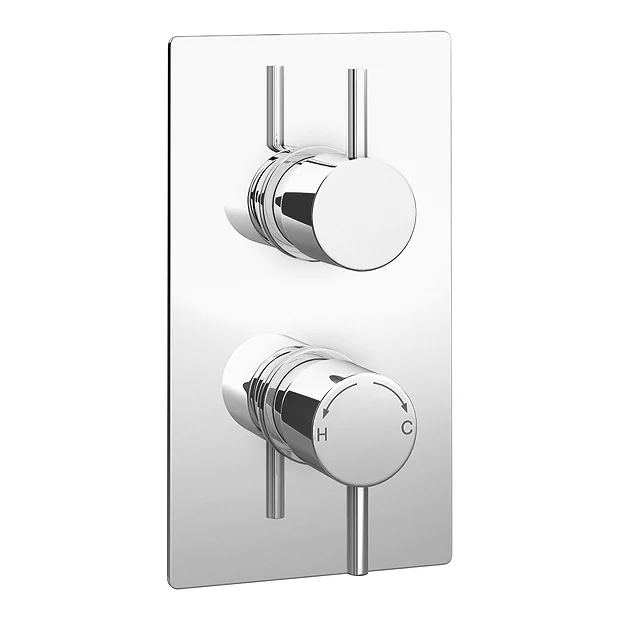

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Depth: 140mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round

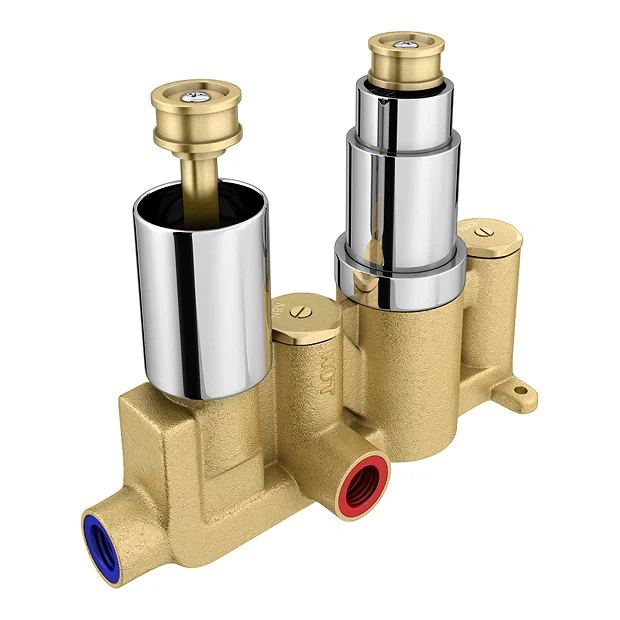

• Material: Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

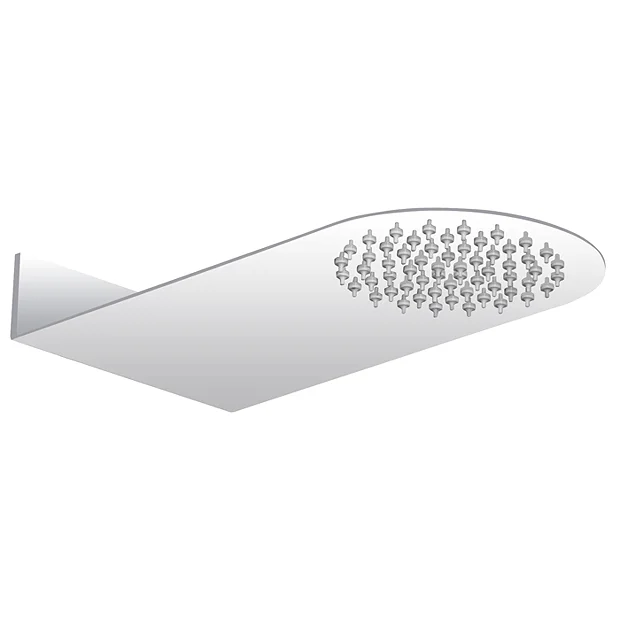

Shower Head Details

• Dimensions: 200 x 480mm
• Style: Modern
• Type: Fixed Flat Rainfall Shower Head
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Thickness/Profile: 9mm
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Wall Mounted
• Rub clean nozzles makes this item easy to clean and maintain
• Shower head is fixed onto the wall with two expansion screws, and comes with a long 1/2″ male threaded adapter which can be connected to the water supply.

• Installation of the shower head requires rear access behind the wall.


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Comprises

(1) Cruze Twin Square Concealed Shower Valve – Chrome
(1) Cruze Round Flat Fixed Shower Head (200 x 480mm)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
