Hudson Reed – Kristal Triple Concealed Thermostatic Shower Valve W Diverter

Hudson Reed – Kristal Triple Concealed Thermostatic Shower Valve with Diverter – KRI3023

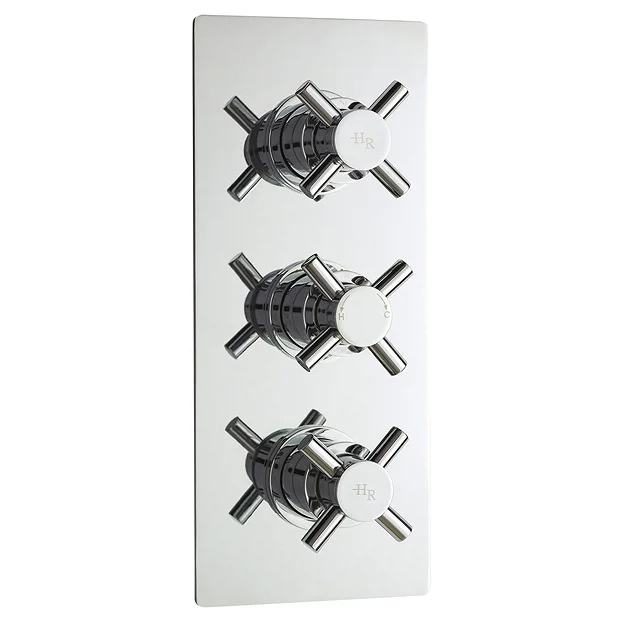

The Hudson Reed Kristal triple concealed thermostatic shower valve with diverter features a clean, minimalist body with a symmetrical crosshead handle design, to provide a stylish yet functional range for any bathroom. The concealing plate can be installed vertically or horizontally to fit your bathroom and is available with a variety of kit options. Suitable for all types of plumbing systems.

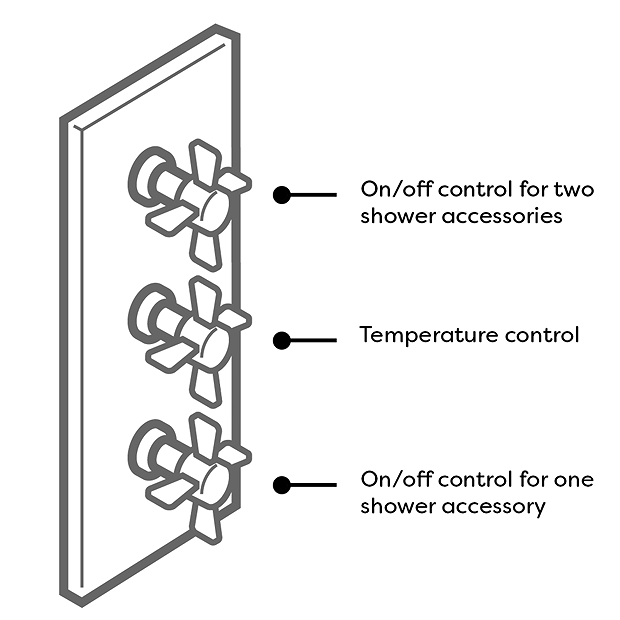

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to a freeflow bath filler.

Product Details

• Brand – Hudson Reed
• Product Code – KRI3023
• Colour/Finishes – Polished chrome
• Material – High quality brass & ABS
• Cross head handles
• Style – Modern
• Product Type – Thermostatic Shower Valve
• Water Pressure – MP – 0.5 bar pressure minimum for showering
• Standards – BC254/0207, EN200 and/or WRc/NSF
• Can be fitted vertically or horizontally
• Suitable for all plumbing systems

Please note – Body jets not included

Guarantee – 20 Year

Flow Rates

0.1 Bar – N/A l/m
0.5 Bar – 13 l/m
1.0 Bar – 17 l/m
2.0 Bar – 24 l/m
3.0 Bar – 27 l/m
