Hudson Reed Round Triple Concealed Thermostatic Shower Valve With Diverter

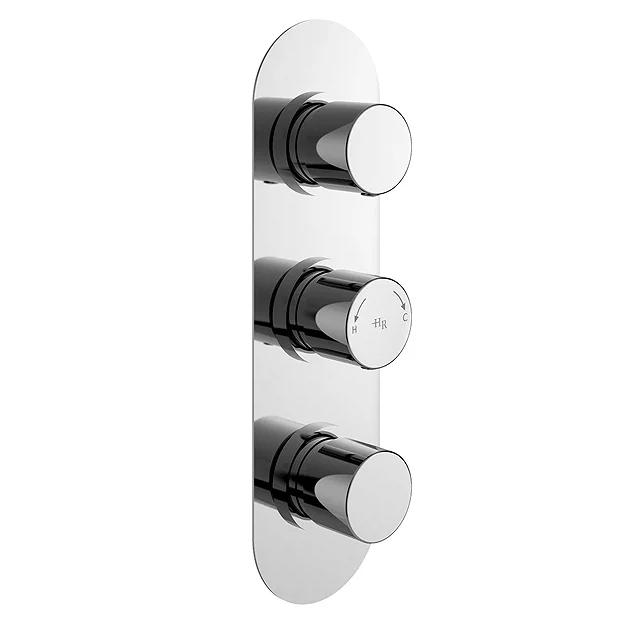

Hudson Reed Round Triple Concealed Thermostatic Shower Valve with Diverter – RNDTR03

The Hudson Reed Round Triple Concealed Thermostatic Shower Valve with Diverter offers thermostatic showering via easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Its reversible cartridges mean if the hot and cold supplies are the wrong way round it doesn’t need re-plumbing.

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Height: 280mm
• Width: 80mm
• Depth: 136mm
• Brand: Hudson Reed
• Colour: Polished Chrome
• Material: Brass / ABS
• Three Outlet
• Valve Handle: Round Handle
• High quality internal brassware for long life
• Patented Valquest cartridge making for easy installation and maintenance
• Accurate flow control
• Full thermostatic protection to prevent scalding in the event of hot or cold water shut off
• Excellent flow rates – even at low pressure
• Accurate flow control
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• The patented cartridge is highly resistant to calcium build up – even in hard water areas
• Pipe Size: 22 mm (3/4″ BSP)
• Operating Pressure: 0.5 bar

Guarantee: 20 Year

Flow Rates

0.5 Bar – 13 l/m
1.0 Bar – 17 l/m
2.0 Bar – 24 l/m
3.0 Bar – 27 l/m
