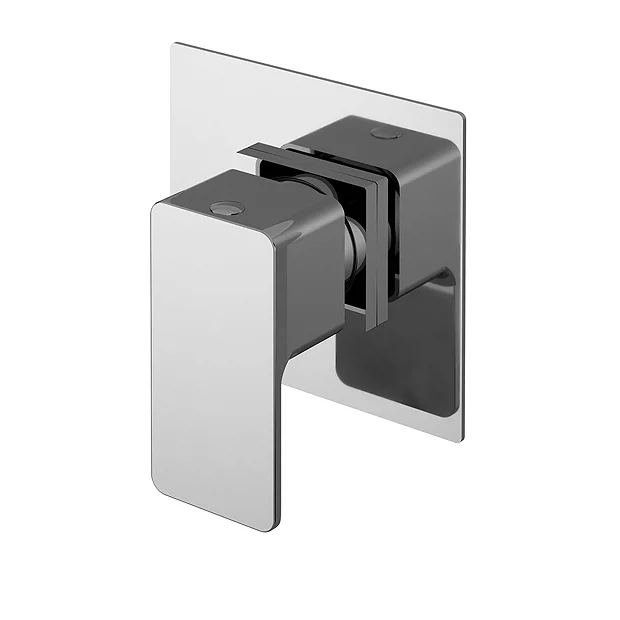

Nuie Windon Concealed Stop Tap

Nuie Windon Concealed Stop Tap – WINST10

With sleek lines and modern angular design, the Windon Concealed Stop Tap is the perfect upgrade for all contemporary bathrooms. The concealed stop tap is operated manually, and independently controls the flow of water to a single water outlet. Turn the operating handle 90 degrees to fully open the valve. Reversing this operation will close the valve.

Designed for use with a Nuie Windon thermostatic temperature control.

Product Details

• Brand: Nuie
• Product Code: WINST10
• Height: 100mm
• Width: 100mm
• Depth: 135mm
• Finish: Chrome
• Material: Brass / ABS
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 15 mm (1/2″ BSP)
• Concealed valve
• For use with 1 Outlet
• Operating Pressure: 0.2 bar

All measurements are approximate

Guarantee: 5 Year

Flow Rates

0.1 Bar – 5.4 l/m
0.5 Bar – 13.4 l/m
1 Bar – 19.2 l/m
2 Bar – 27.5 l/m
3 Bar – 33.3 l/m
